  EN 4875 Sofa Fatigue Test Machine
Product Description



The usage

 EN 4875 Sofa Fatigue Test Machine  is designed for seat drop impact,armrest, back strength, leg test, according to BIFMA,EN.



Made for below test items



 1) Drop impact test for the seat.

2) Horizontal cyclic load test for the armrest

3) Arm downward load static test

4) Back Strength test

5) Vertical static load test

6) Chair and table leg horizontal load test.

7) All kinds of test require cyclic / static vertical or horizontal load test



Specifications



a)  Total no of actuators = 6 set, controlled by servo valve for precise force control and

to compensate the force change caused by transformation of the test furniture.



b)  Each pneumatic actuator bears a 200 Kg force load cell to check the force applied and

send out the signal for the computer to record the force and plot the force graph during the

test cycles.



c)  Actuators height and position easy to adjust.



d) Control interface : Touch screen true color display + PLC



e)  Compressed air requirement: 6 bar



f)   Power supply : AC 220 or 110 volts (Optional ),  800W

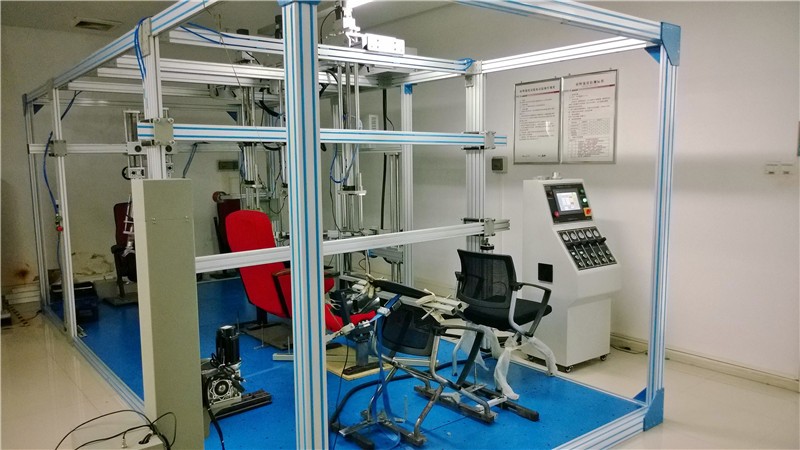

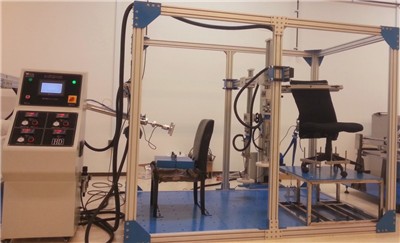

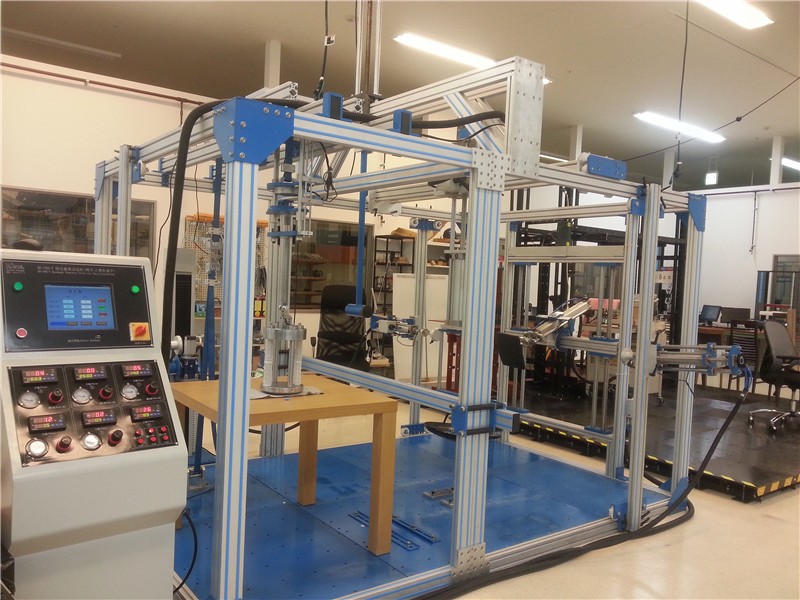

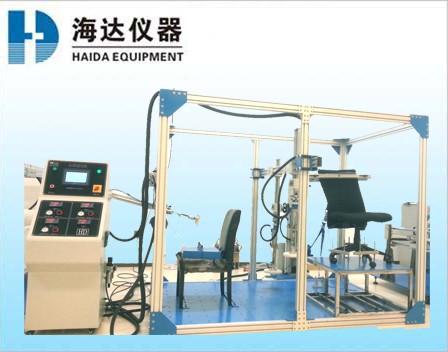

The pictures:






HD-7000T Universal Tester.jpg
